Photo: Olle Frykmo

Prototype
TGOJ - Bt 305.
Just repainted in its original livery at Grängesbergs railway museum

The Bt engines were used in both passenger and good trains until the class was withdrawn in the early 90:s.


Delivery year: 1954 - 1955
Manufacturer : ASEA / Nohab
Numbers built: 11



Lenght: 14,9 meter
Wheelbase: 3,0 + 7,8 meter
Axel arrangement: Bo´Bo´
Model

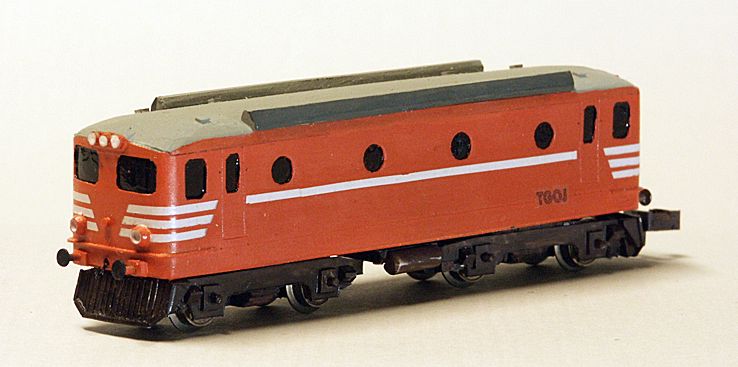

Click to enlarge N scale model still without the pantographs.



  top

Building the model
A suitable chassis is the Minitrix DB 111



                                   Picture from the Minitrix89/90 catalogue



Body:
Scratchbuilt with styren sheets in two layers with
windows cut out of the outer layer.

The roof is made of bonded styren sheets and then filed to
the right shape.		 Click to enlarge

top

Painting:
 The model is airbrushed with Molak and Humbrol colors.
The white stripes are decal strips



top

More pictures


Another picture of the Bt 405 at Grängesberg
